KRONTEC HOSE ASSEMBLY - 0002 - 745mm

Brand: Krontec
Availability: Out of stock
SKU: KHA311-0002-1
Price on application

Get in touch with us for pricing for this item.

*
*
*

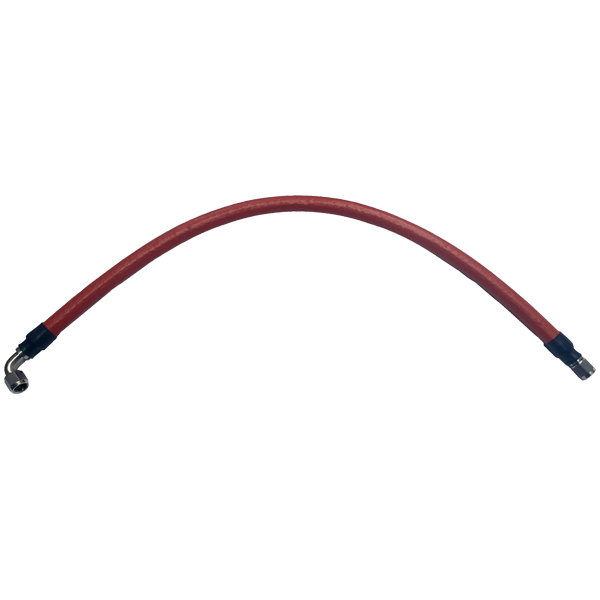

KRONTEC HOSE ASSEMBLY - 0002 - 745mm

Krontec hose assembly for power steerring line.
This Titflex High Pressure hose and fittings assembly has a working pressure 210bar, but burst pressure of 840bar, which helps avoid any destruction from high peeks during racing.
The hose used in this assembly is an Antistatic PTFE Tube with a stainless steel outer cover. This hose has chemical resistance compatible with all fluids, being the best chemical resistance of all known materials, with usage for Fuel, oil, breather systems, and pneumatic.
This Hose assembly is also fitted with a protective firesleeve.
Pwr/S sensor to rack HP.

TYPE OF HOSE/SIZE/FITTING -6 HOSE AND FITTINGS
HOSE TEMPERATURE RANGE: -54 °C to 232 °C
HOSE PART NUMBER KRONTEC R160-06D
HOSE ID (Min) (MM) 7.6
HOSE OD (Min) (MM) 12.5
HOSE MIN BEND RADIUS (MM) 63.5
HOSE OPERATING PRESSURE (BAR) 210
HOSE CUT LENGTH (MM) 765
FITTING A 90
FITTING B STRAIGHT
FITTING B ALIGNMENT N/A
EXTRA HEAT SLEEVING/NOTES -6 GOODRIDGE FIREPROOF SLEEVE 745MM

If you have a specific application requirement CONTACT US!
