556 JIC HIGH PRESSURE SCHRADER VALVE

Availability: In stock
SKU: H556J
$220.00 incl. GST
$165.00 incl. GST

556 JIC HIGH PRESSURE SCHRADER VALVE

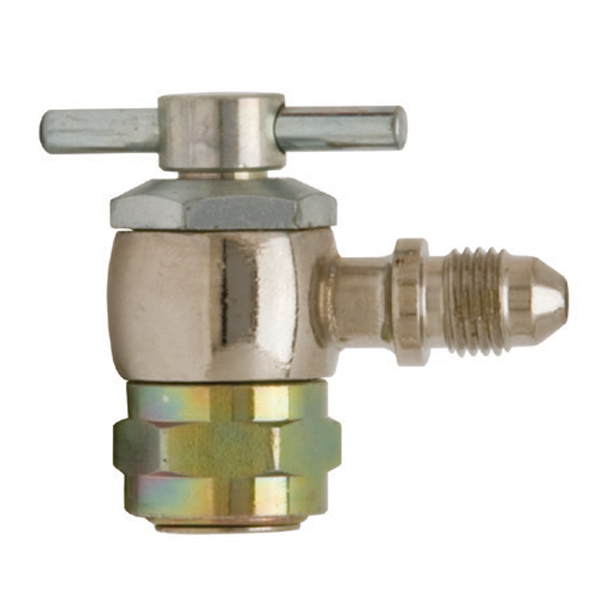

H556 Schrader Valve (MAX 3000 psi) High quality, high pressure inflating connector attaches securely by hand or wrench (11/16") to standard tyre valves and high pressure tank valves. The T-handle can then be used to safely depress the valve pin. Comes with 3/8-24 Male thread for 3/16" flare tube fitting, meets MS336556E3 and 7.7 mm (.305"-32) valve thread. Has a core depression pin and copper sealing washer.

The H-556 is typically used for pressurizing shock struts, accumulators, fire extinguishers and high pressure applications up to 3000psi.
If you require a 1/8" Male NPT inlet thread see part# H556

Products specifications
Dimensions 20mm Wide x 38mm High x 40mm Diameter
Inlet Fitting 3/8-24 for 3/16" Flare Tube Fitting
Operating Pressure 0 - 3000 psi
